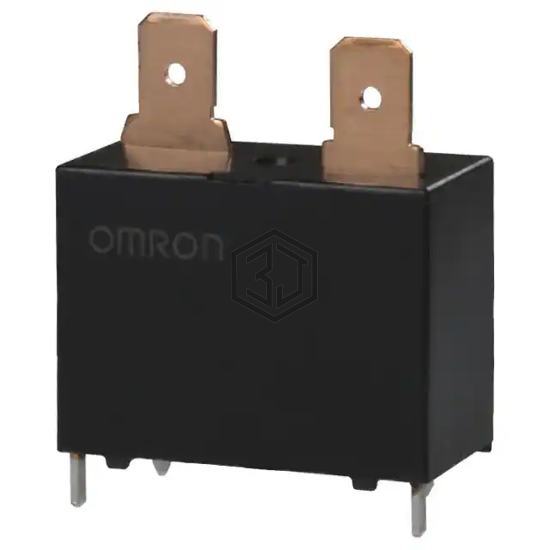

RELAY GEN PURPOSE SPST 20A 12V
G4A-1A-E DC12 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE SPST 20A 12V. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, termination style PC Pin, Quick Connect - 0.250" (6.3mm), coil voltage 12VDC.
In Stock: 1,158
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -20°C ~ 60°C |
| Contact Material | - |
| Relay Type | General Purpose |
