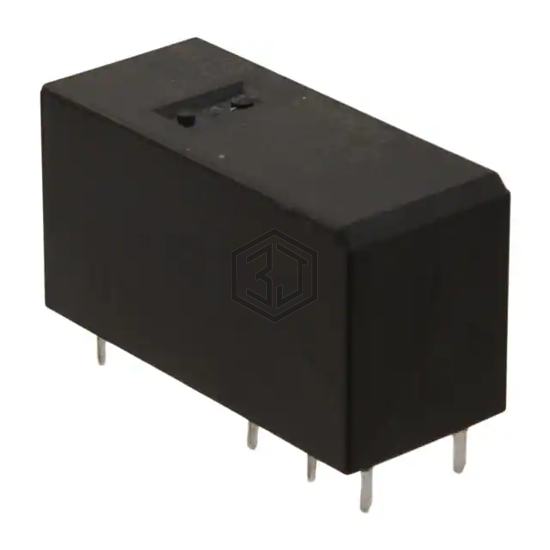

RELAY GEN PURPOSE DPDT 8A 12V
G2RL24CFDC12 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE DPDT 8A 12V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Alloy, Cadmium Free, termination style PC Pin.
In Stock: 594
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 440VAC, 300VDC - Max |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Relay Type | General Purpose |
Submit your RFQ for G2RL24CFDC12 and get a quote within 24 hours.
