RELAY GEN PURPOSE SPST 23A 24V

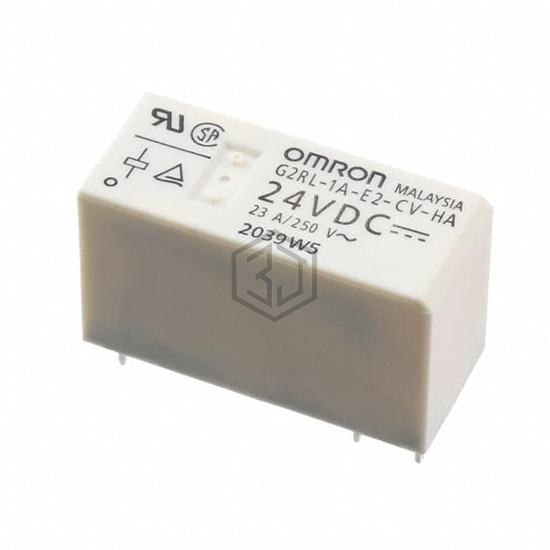

G2RL-1A-E2-CV-HA DC24 is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE SPST 23A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Silver Alloy, Cadmium Free, termination style PC Pin.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 23 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Relay Type | General Purpose |
