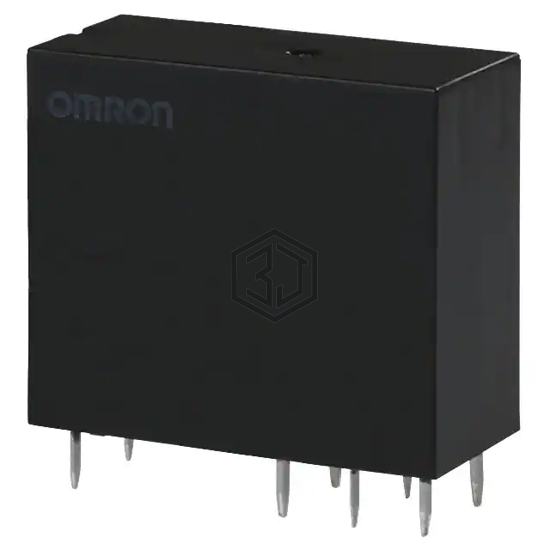

RELAY GEN PURPOSE DPDT 4A 24V
G2R24AULDC24BYOMI is a Power Relays, Over 2 Amps manufactured by Omron Electronics Inc-EMC Div. RELAY GEN PURPOSE DPDT 4A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, contact material Silver (Ag), Gold (Au), termination style PC Pin.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 4 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Coil Current | 21.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for G2R24AULDC24BYOMI and get a quote within 24 hours.
