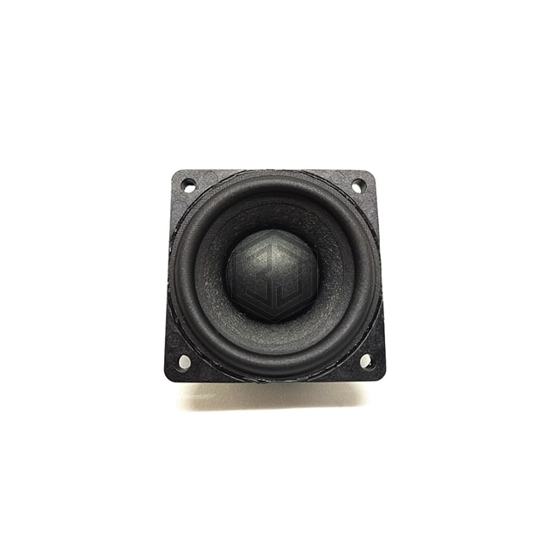

SPEAKER 4OHM 6W TOP PORT 83DB
OWS-484833TA-4 is a Speakers manufactured by Ole Wolff Electronics Inc. SPEAKER 4OHM 6W TOP PORT 83DB. Key specifications: size / dimension 1.890" L x 1.890" W (48.00mm x 48.00mm), termination Quick Connect, ratings IEC 60601-1-8, power - max 8 W.
In Stock: 129
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 120 Hz ~ 20 kHz |
| Frequency - Self Resonant | 160Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 83.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 6 W |
| Power - Max | 8 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Plastic |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | IEC 60601-1-8 |
| Termination | Quick Connect |
| Size / Dimension | 1.890" L x 1.890" W (48.00mm x 48.00mm) |
| Height - Seated (Max) | 1.480" (37.60mm) |
