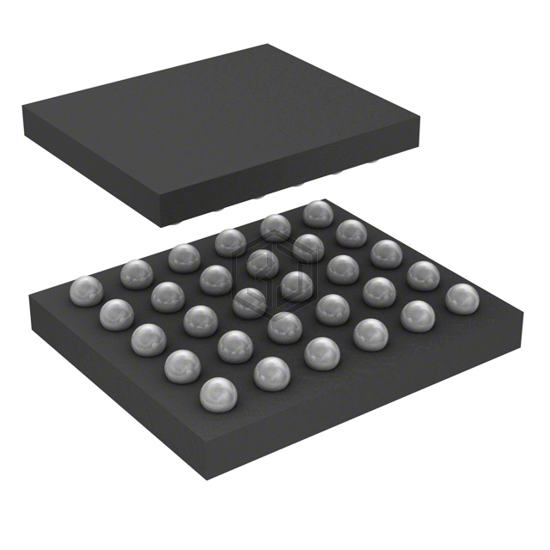

IC PWR SWITCH N-CHAN 1:1 30WLCSP
NX5P3201CUKAZ is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 30WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 30-UFBGA, WLCSP.
In Stock: 3,980
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | USB Switch |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | Parallel |
| Voltage - Load | 2.7V ~ 5.5V, 3.4V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A, 6A |
| Rds On (Typ) | 8mOhm, 32mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 30-WLCSP (2.26x2.56) |
| Package / Case | 30-UFBGA, WLCSP |
NX5P3201CUKAZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS22991BRAAR | Texas Instruments | IC PWR SWITCH N-CH 1:1 10-UQFN | 83% | View |
| ADP197ACBZ-R7 | Analog Devices Inc. | IC PWR SWITCH N-CHAN 1:1 6WLCSP | 81% | View |
| TPS2549IRTETQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 79% | View |
| MIC2043-2YM-TR | Microchip Technology | IC PWR SWITCH N-CHAN 1:1 8SOIC | 78% | View |
| TPS22963CYZPT | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 6DSBGA | 70% | View |
| MIC2042-1YTS-TR | Microchip Technology | IC PWR SWITCH N-CHAN 1:1 14TSSOP | 66% | View |
