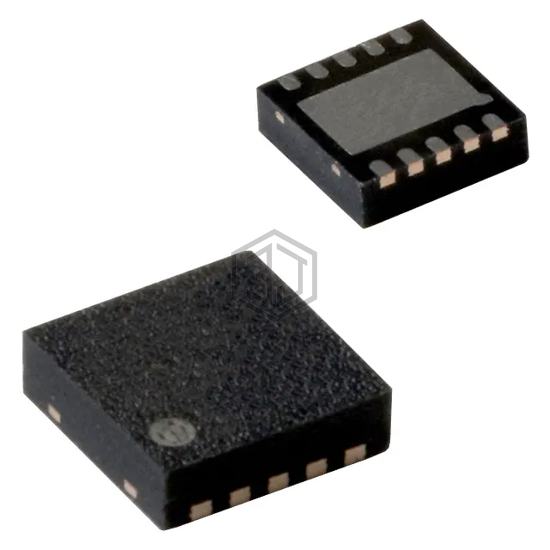

IC ANALOG SWITCH SPDT 10HVSON
NX3L4684TK,132 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPDT 10HVSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 1,772
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 45ns, 20ns |
| -3db Bandwidth | 20MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-HVSON (3x3) |
NX3L4684TK,132 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L4684GM,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT 10XQFN | 100% | View |
| ADG822BRM | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 72% | View |
| ADG821BRMZ | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 72% | View |
| ADG822BRM-REEL | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 72% | View |
| ADG819BRM-R2 | Analog Devices Inc. | 2:1 MUX/SPDT SWITCH | 67% | View |
| ADG801BRTZ-REEL7 | Analog Devices Inc. | IC SWITCH SPST SOT23-6 | 50% | View |
Submit your RFQ for NX3L4684TK,132 and get a quote within 24 hours.
