2:1 MUX/SPDT SWITCH

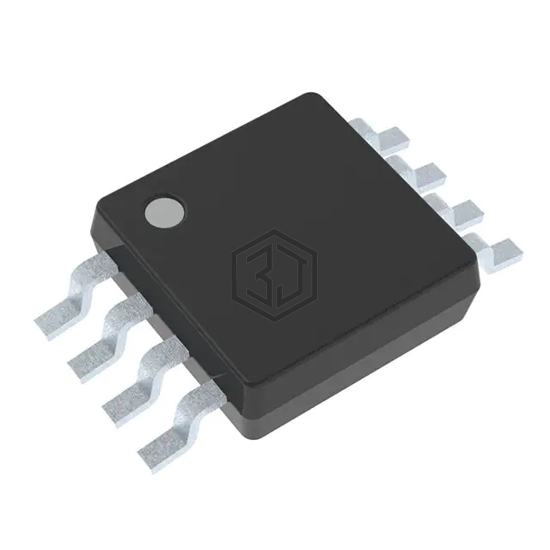

ADG819BRM-R2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. 2:1 MUX/SPDT SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 1.
In Stock: 1,293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 45ns, 16ns |
| -3db Bandwidth | 17MHz |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 80pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -72dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG822BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 83% | View |
| ADG823BRM | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 83% | View |
| ADG822BRM-REEL | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 83% | View |
| ADG801BRT-REEL7 | Analog Devices Inc. | IC SWITCH SPST SOT23-6 | 83% | View |
| NX3L4051PW,118 | NXP USA Inc. | IC ANALOG SWITCH 8CH 16TSSOP | 74% | View |
| NX3L4684GM,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT 10XQFN | 67% | View |
Submit your RFQ for ADG819BRM-R2 and get a quote within 24 hours.
