HIGH-SIDE SWITCH 12V PENTA 40MOH

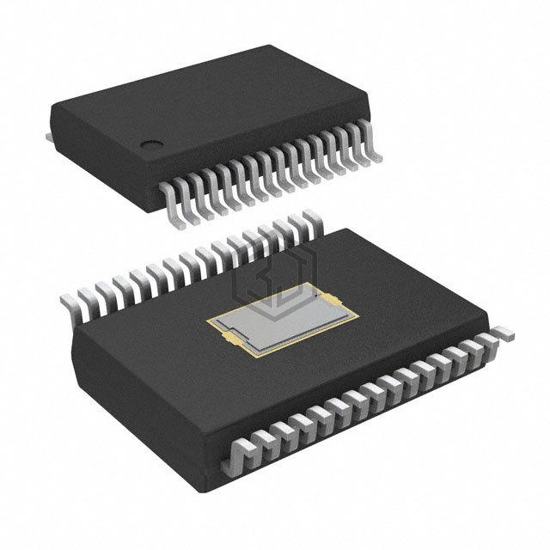

MC40XS6500CEK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. HIGH-SIDE SWITCH 12V PENTA 40MOH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 8,704
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 5 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 3.9A |
| Rds On (Typ) | 40mOhm |
| Input Type | CMOS |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-SOIC-EP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
MC40XS6500CEK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC40XS6500BEKR2 | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 32SOIC | 100% | View |
| MC40XS6500CEKR2 | NXP USA Inc. | HIGH-SIDE SWITCH 12V PENTA 40MOH | 100% | View |
| MC40XS6500BEK | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 32SOIC | 100% | View |
| VND5160AJTR-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO12 | 75% | View |
| BTS50451EJAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-8 | 68% | View |
| VN5160STR-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 8SO | 63% | View |
Submit your RFQ for MC40XS6500CEK and get a quote within 24 hours.
