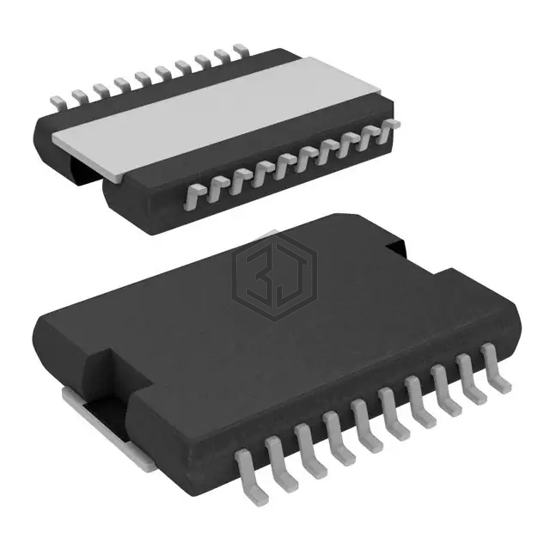

IC MOTOR DRIVER PAR 20HSOP
MC33186DH2 is a PMIC - Full, Half-Bridge Drivers manufactured by NXP USA Inc.. IC MOTOR DRIVER PAR 20HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 28V, package / case 20-SOIC (0.433", 11.00mm Width) Exposed Pad.
In Stock: 4,788
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose, Solenoids |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Bi-CMOS |
| Rds On (Typ) | 150mOhm |
| Current - Output / Channel | 5A |
| Current - Peak Output | - |
| Voltage - Supply | 5V ~ 28V |
| Voltage - Load | 5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | 20-HSOP |
MC33186DH2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC33186DH2R2 | NXP USA Inc. | IC MOTOR DRIVER PAR 20HSOP | 100% | View |
| MC33186VW2R2 | Freescale Semiconductor | IC MOTOR DRIVER PAR 20HSOP | 100% | View |
| MC33186HVW2R2 | NXP USA Inc. | IC MOTOR DRIVER PAR 20HSOP | 100% | View |
| MC33186VW1 | NXP USA Inc. | IC MOTOR DRIVER PAR 20HSOP | 100% | View |
| TLE9201SGAUMA1 | Infineon Technologies | IC DRIVER 12DSO | 93% | View |
| L6201PS | STMicroelectronics | IC MOTOR DRIVER PAR 20POWERSO | 60% | View |
Submit your RFQ for MC33186DH2 and get a quote within 24 hours.
