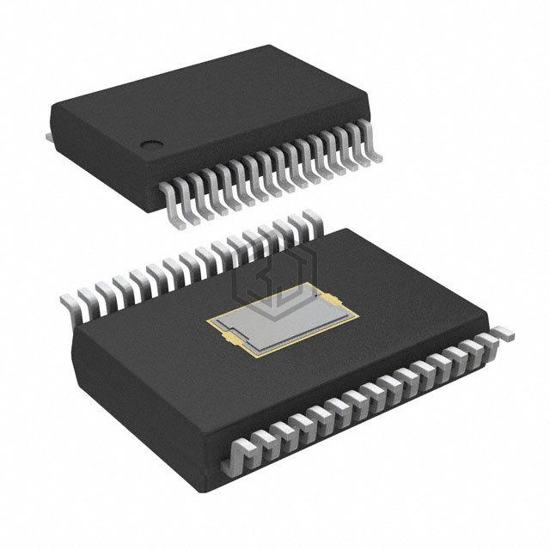

IC PWR SWITCH N-CHAN 1:1 32SOIC
MC22XS4200CEKR2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 32SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 4,362
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 4.2A |
| Rds On (Typ) | 22mOhm |
| Input Type | - |
| Features | Internal PWM, Slew Rate Controlled |
| Fault Protection | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-SOIC-EP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
MC22XS4200CEKR2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC22XS4200CEK | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 32SOIC | 100% | View |
| MC22XS4200DEKR2 | NXP USA Inc. | HIGH-SIDE SWITCH, 24V, DUAL 22MO | 100% | View |
| MC22XS4200DEK | NXP USA Inc. | HIGH-SIDE SWITCH, 24V, DUAL 22MO | 100% | View |
| BTS612N1E3128AAUMA1 | Infineon Technologies | IC PWR SWITCH | 90% | View |
| ZXMS81045SP-13 | Diodes Incorporated | HIGH SIDE INTELLIFET SO-8EP T&R | 77% | View |
| TPS22968NQDMGRQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 10WSON | 70% | View |
Submit your RFQ for MC22XS4200CEKR2 and get a quote within 24 hours.
