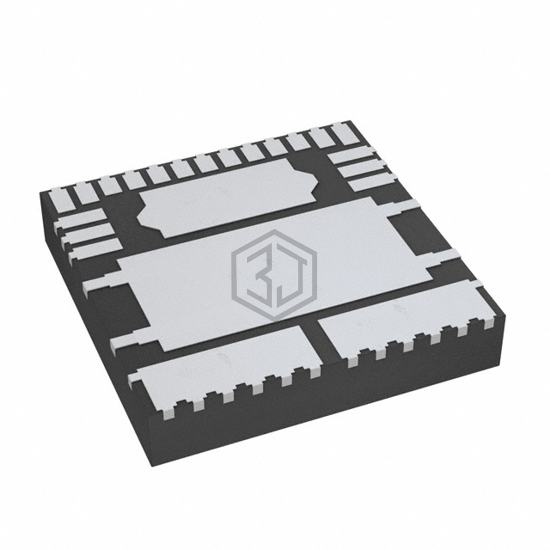

IC PWR SWITCH N-CHAN 1:1 23PQFN
MC10XSD200FK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 23PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 23-PowerQFN.
In Stock: 3,269
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 10mOhm |
| Input Type | - |
| Features | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 23-PQFN (12x12) |
| Package / Case | 23-PowerQFN |
MC10XSD200FK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VND830MSPTR-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 93% | View |
| NCV8460ADR2G | onsemi | IC PWR DRIVER N-CHAN 1:1 8SOIC | 83% | View |
| MC10XS3435DPNAR2 | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 24PQFN | 83% | View |
| VNQ660SP13TR | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 83% | View |
| MC15XS3400CPNA | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 24PQFN | 83% | View |
| MC15XS3400CPNAR2 | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 24PQFN | 83% | View |
Submit your RFQ for MC10XSD200FK and get a quote within 24 hours.
