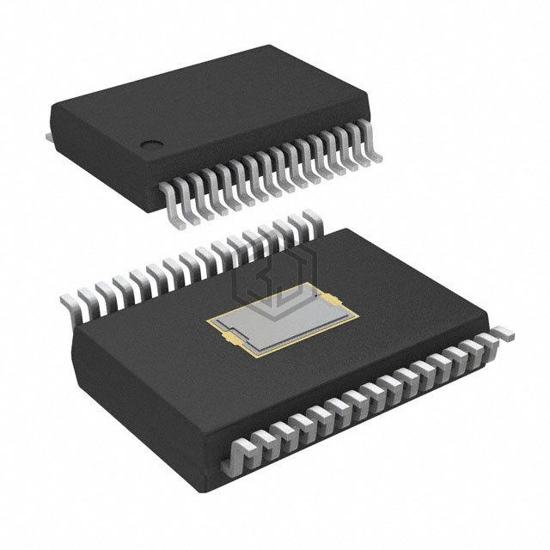

IC PWR SWITCH HIGH SIDE 32SOIC
MC10XS6225BEK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH HIGH SIDE 32SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 3,880
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | - |
| Output Configuration | High Side |
| Output Type | - |
| Interface | SPI |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 4.5A, 9A |
| Rds On (Typ) | 10mOhm, 25mOhm |
| Input Type | - |
| Features | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-SOIC-EP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
MC10XS6225BEK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC10XS6225BEKR2 | NXP USA Inc. | IC PWR SWITCH 32SOIC | 100% | View |
| MC10XS6225EK | NXP USA Inc. | IC PWR SWITCH HIGH SIDE 32HSOP | 93% | View |
| MC10XS6225EKR2 | NXP USA Inc. | IC PWR SWITCH HIGH SIDE 32HSOP | 93% | View |
| MC25XS6300BEK | NXP USA Inc. | IC PWR SWITCH HIGH SIDE 32SOIC | 93% | View |
| MC25XS6300BEKR2 | NXP USA Inc. | IC SWITCH HIGH SIDE 32SOIC | 93% | View |
| PJS6630_S2_00001 | Panjit International Inc. | 20V P-MOSFET LOAD SWITCH WITH LE | 73% | View |
Submit your RFQ for MC10XS6225BEK and get a quote within 24 hours.
