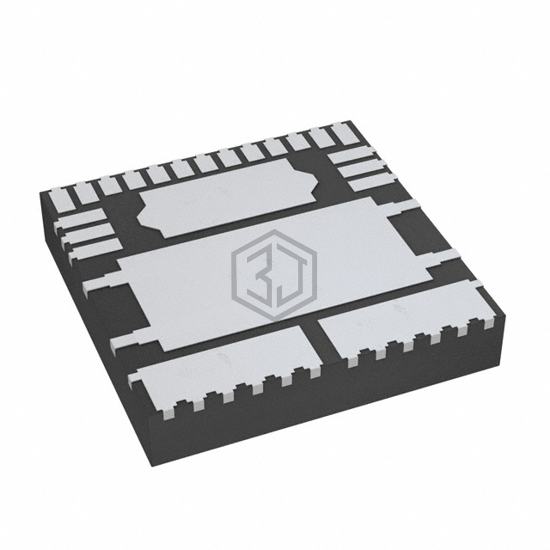

IC PWR SWITCH N-CHAN 1:1 23PQFN
MC10XS4200BFK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 23PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 23-PowerQFN.
In Stock: 8,948
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 10mOhm (Max) |
| Input Type | - |
| Features | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 23-PQFN (12x12) |
| Package / Case | 23-PowerQFN |
MC10XS4200BFK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC10XS4200BAFK | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 23PQFN | 100% | View |
| VND830PTR-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 93% | View |
| VND830MSP-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 93% | View |
| VNQ660SP | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 83% | View |
| VN750-B5 | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 P2PAK | 81% | View |
| VN750S | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 8SO | 81% | View |
Submit your RFQ for MC10XS4200BFK and get a quote within 24 hours.
