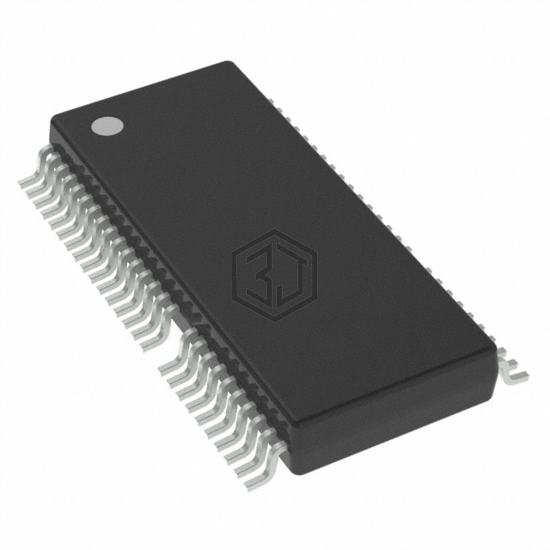

HIGH-SIDE SWITCH 12V DUAL 8MOHMS
MC08XS6421CEKR2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. HIGH-SIDE SWITCH 12V DUAL 8MOHMS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 54-SSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 6,521
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Rds On (Typ) | 8mOhm, 21mOhm |
| Input Type | CMOS |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 54-HSOP |
| Package / Case | 54-SSOP (0.295", 7.50mm Width) Exposed Pad |
MC08XS6421CEKR2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC17XSF400EKR2 | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 32HSOP | 100% | View |
| MC17XS6400EKR2 | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 32HSOP | 100% | View |
| MC08XS6421DEKR2 | NXP USA Inc. | IC HIGH SIDE SWITCH 12V 32SOIC | 93% | View |
| MC17XS6500EEKR2 | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 32SOIC | 93% | View |
| TPS2559DRCR | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 10VSON | 57% | View |
| TPS2559QWDRCRQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 10VSON | 57% | View |
Submit your RFQ for MC08XS6421CEKR2 and get a quote within 24 hours.
