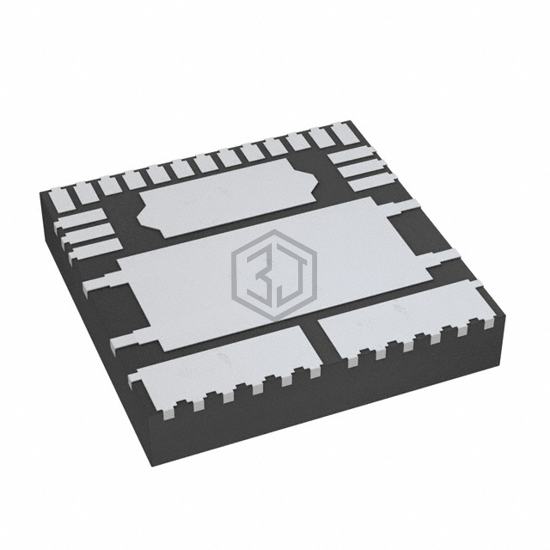

IC PWR SWITCH N-CHAN 1:2 23PQFN
MC06XSD200FKR2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:2 23PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 23-PowerQFN.
In Stock: 3,648
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 9A |
| Rds On (Typ) | 6mOhm |
| Input Type | - |
| Features | Internal PWM, Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 23-PQFN (12x12) |
| Package / Case | 23-PowerQFN |
MC06XSD200FKR2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BTS70101EPAXUMA1 | Infineon Technologies | PROFET | 83% | View |
| VNQ7003SYTR | STMicroelectronics | IC PWR DRVR N-CHAN 4:4 PWRSSO36 | 83% | View |
| VN06SPTR-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 81% | View |
| VN820B5-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 P2PAK | 81% | View |
| VN820SP | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 81% | View |
| VN06SP-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 81% | View |
Submit your RFQ for MC06XSD200FKR2 and get a quote within 24 hours.
