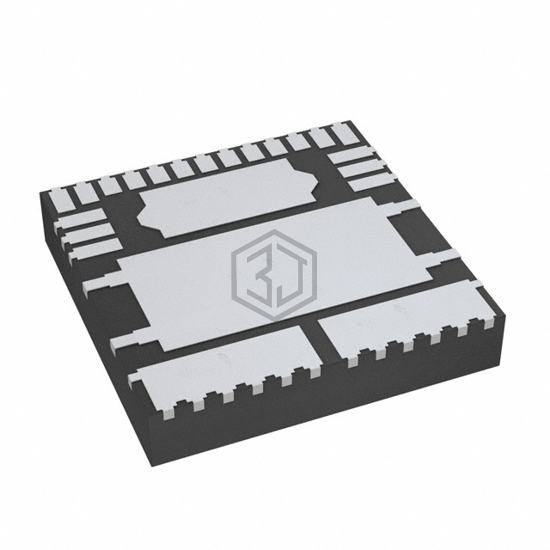

IC PWR SWITCH N-CHAN 1:1 23PQFN
MC06XS4200FK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 23PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 23-PowerQFN.
In Stock: 1,450
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 9A |
| Rds On (Typ) | 6mOhm (Max) |
| Input Type | - |
| Features | Internal PWM, Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 23-PQFN (12x12) |
| Package / Case | 23-PowerQFN |
MC06XS4200FK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC06XSD200FK | Freescale Semiconductor | HIGH-SIDE SWITCH, 36V, DUAL 6MOH | 100% | View |
| VND7E050AJTR | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO16 | 88% | View |
| VN820-B513TR | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 P2PAK | 81% | View |
| BTS70121EPAXUMA1 | Infineon Technologies | PROFET | 80% | View |
| BTT60101ERAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TDSO-14 | 79% | View |
| BTS436L2GATMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO263-5 | 78% | View |
Submit your RFQ for MC06XS4200FK and get a quote within 24 hours.
