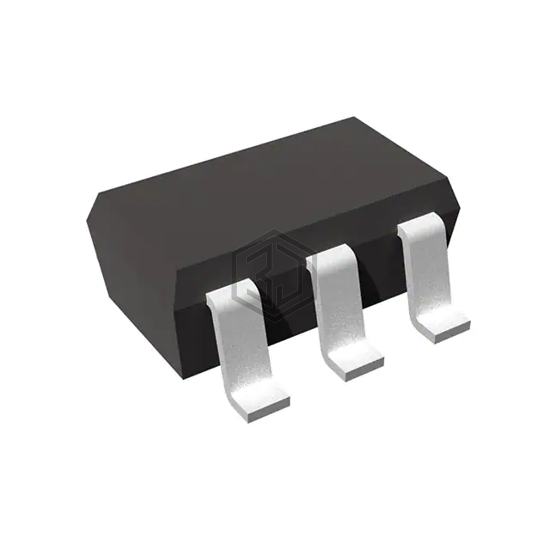

IC PWR SWITCH P-CHAN 1:1 SOT23-5
R5523N001B-TR-FE is a PMIC - Power Distribution Switches, Load Drivers manufactured by Nisshinbo Micro Devices Inc.. IC PWR SWITCH P-CHAN 1:1 SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SC-74A, SOT-753.
In Stock: 5,503
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | - |
| Voltage - Load | 2.2V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.3A |
| Rds On (Typ) | 130mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Over Current, Over Temperature, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RT9728AHGE | Richtek USA Inc. | IC PWR SWITCH P-CHAN 1:1 SOT23-6 | 98% | View |
| RT9728ALGE | Richtek USA Inc. | IC PWR SWITCH P-CHAN 1:1 SOT23-6 | 98% | View |
| RT9728CHGE | Richtek USA Inc. | IC CURRENT LIMIT SWITCH SOT-23-6 | 98% | View |
| RT9728AHZQW | Richtek USA Inc. | IC PWR SWITCH P-CHAN 1:1 6WDFN | 98% | View |
| RT9728AHGQW | Richtek USA Inc. | IC PWR SWITCH P-CHAN 1:1 6WDFN | 98% | View |
| RT9728ALZQW | Richtek USA Inc. | IC PWR SWITCH P-CHAN 1:1 6WDFN | 98% | View |
Submit your RFQ for R5523N001B-TR-FE and get a quote within 24 hours.
