IC MTR DRVR BIPOLAR 4.75V-5.25V

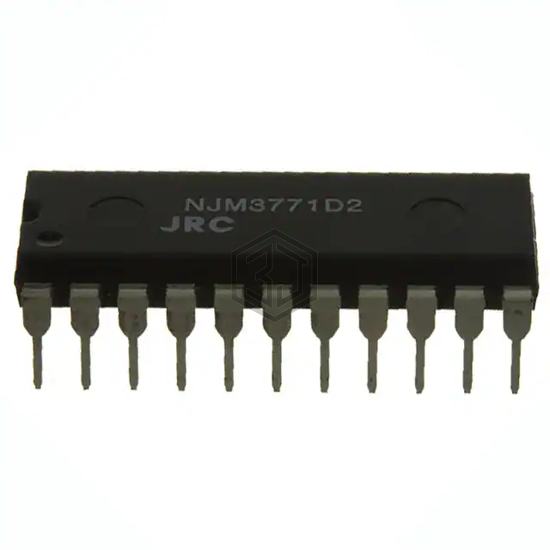

NJM3771D2 is a PMIC - Motor Drivers, Controllers manufactured by Nisshinbo Micro Devices Inc.. IC MTR DRVR BIPOLAR 4.75V-5.25V. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 22-DIP (0.400", 10.16mm).
In Stock: 9,721
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | 1, 1/2 |
| Applications | General Purpose |
| Current - Output | 650mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 40V |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 22-DIP (0.400", 10.16mm) |
| Supplier Device Package | - |
NJM3771D2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UDN2916B | Allegro MicroSystems | IC MTRDRV BIPLR 4.75-5.25V 24DIP | 94% | View |
| E-L6219 | STMicroelectronics | IC MOTOR DRVR BIPOLAR 24POWERDIP | 94% | View |
| NJM3773D2 | Nisshinbo Micro Devices Inc. | IC MTRDRV BIPLR 4.75-5.25V 22DIP | 94% | View |
| L293D | STMicroelectronics | IC MTRDRV BIPLR 4.5-36V 16PWRDIP | 82% | View |
| US79KUA-AAA-001-BU | Melexis Technologies NV | IC MOTOR DRIVER 3.5V-18V TO92-3 | 66% | View |
| AH2984-PG-B | Diodes Incorporated | IC MOTOR DRIVER 2.5V-15V 4SIP | 54% | View |
Submit your RFQ for NJM3771D2 and get a quote within 24 hours.
