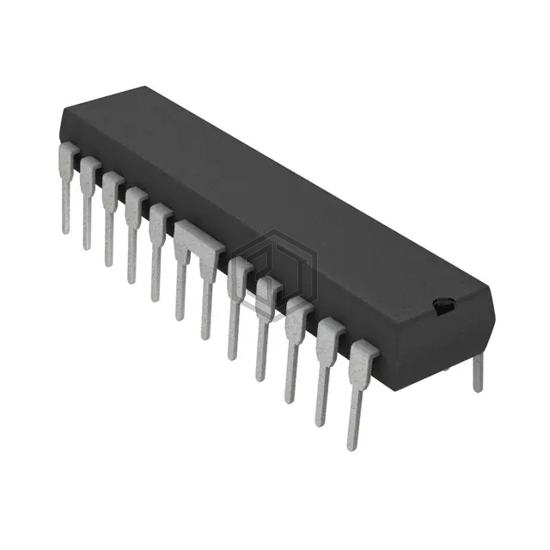

IC MTRDRV BIPLR 4.75-5.25V 24DIP
UDN2916B is a PMIC - Motor Drivers, Controllers manufactured by Allegro MicroSystems. IC MTRDRV BIPLR 4.75-5.25V 24DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 24-PowerDIP (0.300", 7.62mm).
In Stock: 8,966
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 750mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 24-PowerDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-DIP |
UDN2916B is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E-L6219 | STMicroelectronics | IC MOTOR DRVR BIPOLAR 24POWERDIP | 100% | View |
| UDN2916B-T | Allegro MicroSystems | IC MTRDRV BIPLR 4.75-5.25V 24DIP | 100% | View |
| A2919SB | Allegro MicroSystems | IC MTRDRV BIPLR 4.75-5.25V 24DIP | 100% | View |
| A3964SB | Allegro MicroSystems | IC MTRDRV BIPLR 4.75-5.25V 24DIP | 85% | View |
| L293D | STMicroelectronics | IC MTRDRV BIPLR 4.5-36V 16PWRDIP | 76% | View |
| US79KUA-AAA-001-BU | Melexis Technologies NV | IC MOTOR DRIVER 3.5V-18V TO92-3 | 60% | View |
Submit your RFQ for UDN2916B and get a quote within 24 hours.
