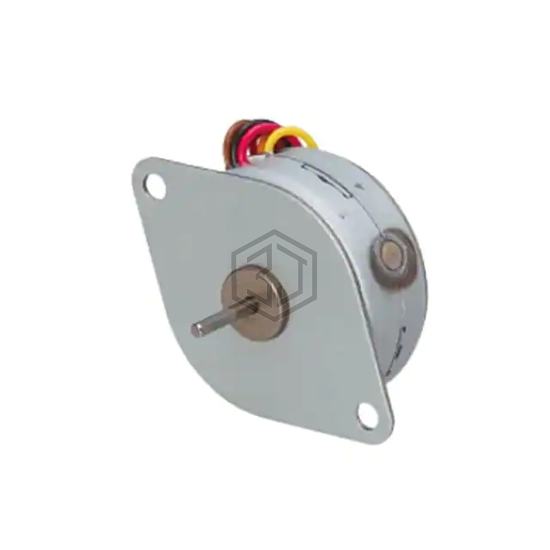

Tin-can step motor 48 steps 5V
PF35T-48W4 is a Stepper Motors manufactured by Nippon Pulse America, Inc.. Tin-can step motor 48 steps 5V. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 5VDC, size / dimension 1.378" Dia (35.00mm), termination style Wire Leads.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | - |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | - |
| Size / Dimension | 1.378" Dia (35.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.079" (2.00mm) |
| Length - Shaft and Bearing | 0.512" (13.00mm) |
| Mounting Hole Spacing | 1.654" (42.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | - |
| Features | Round Shaft |
Submit your RFQ for PF35T-48W4 and get a quote within 24 hours.
