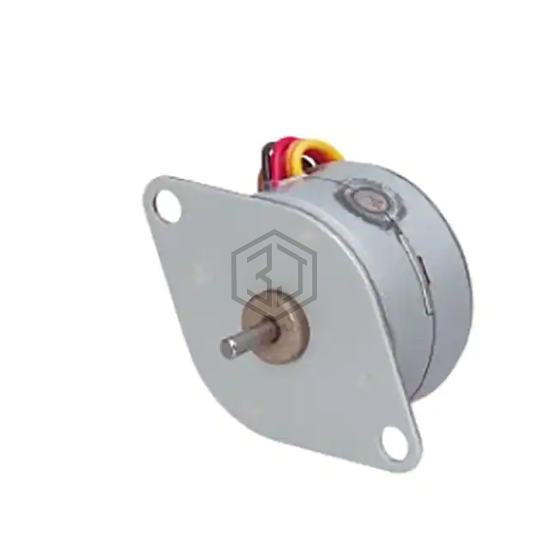

Tin-can step motor 48 steps 5V
PF25-48Q4 is a Stepper Motors manufactured by Nippon Pulse America, Inc.. Tin-can step motor 48 steps 5V. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 5VDC, size / dimension Round - 0.984" Dia (25.00mm), termination style Wire Leads.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 1.699 / 12 |
| Size / Dimension | Round - 0.984" Dia (25.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.079" (2.00mm) |
| Length - Shaft and Bearing | 0.323" (8.20mm) |
| Mounting Hole Spacing | 1.260" (32.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 15 Ohms |
| Features | Round Shaft |
Submit your RFQ for PF25-48Q4 and get a quote within 24 hours.
