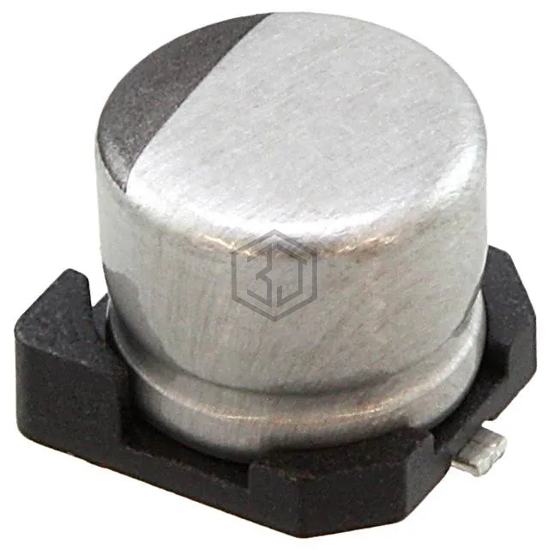

CAP ALUM 22UF 20% 10V SMD
UZT1A220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,361
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24 mA @ 120 Hz |
| Ripple Current @ High Frequency | 36 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY100ARA220MD60G | Chemi-Con | CAP ALUM 22UF 20% 10V SMD | 100% | View |
| UE226M010HCHTA | Aillen | CAP ALUM 22UF 20% 10V SMD | 83% | View |
| UZT0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 75% | View |
| EMZA160ADA220MD61G | United Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 54% | View |
| UCQ1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 54% | View |
| UUL1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 52% | View |
Submit your RFQ for UZT1A220MCL1GB and get a quote within 24 hours.
