CAP ALUM 22UF 20% 25V SMD

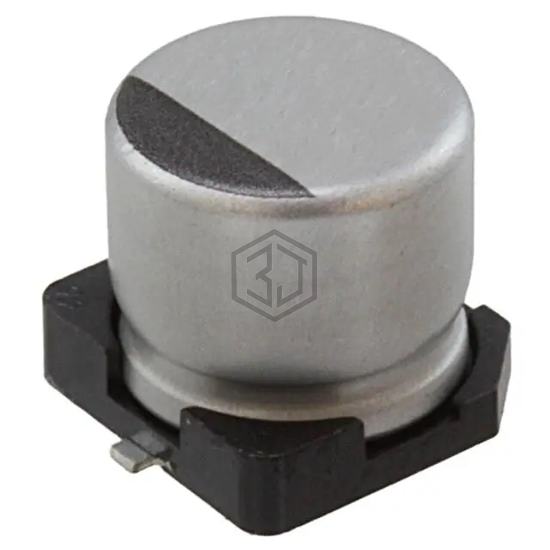

UUL1E220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,528
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 42 mA @ 120 Hz |
| Ripple Current @ High Frequency | 63 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VES220M1VTR-0605S | Surge | CAP ALUM 35V POLAR | 83% | View |
| EMVH350ADA220MF60G | United Chemi-Con | CAP ALUM 22UF 20% 35V SMD | 77% | View |
| EMZA160ADA220MD61G | United Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 74% | View |
| 63SGV22M8X10.5 | Rubycon | CAP ALUM 22UF 20% 63V SMD | 66% | View |
| EEE-FT1E220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 56% | View |
| UZT1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 52% | View |
Submit your RFQ for UUL1E220MCL1GS and get a quote within 24 hours.
