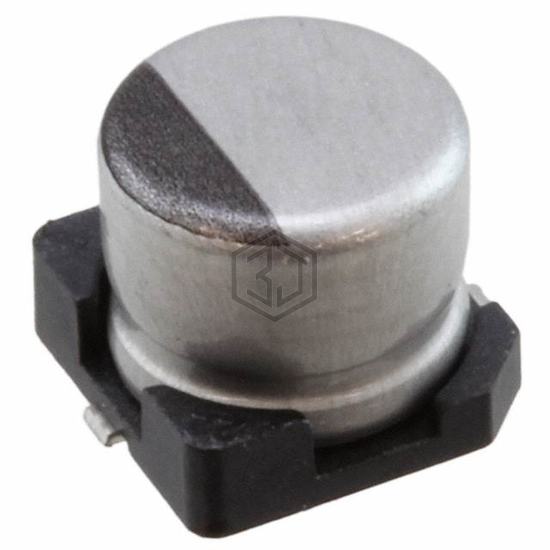

CAP ALUM 10UF 20% 35V SMD
UZS1V100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,049
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZS1V100MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865250543004 | Würth Elektronik | CAP ALUM 10UF 20% 35V SMD | 100% | View |
| EMVA350ADA100MD55G | United Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 91% | View |
| EMVE250ADA100ME55G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 84% | View |
| EMZA350ADA100MD61G | United Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 77% | View |
| 16NSEV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 68% | View |
| UUD1V100MCL1GS | Nichicon | CAP ALUM 10UF 20% 35V SMD | 51% | View |
Submit your RFQ for UZS1V100MCL1GB and get a quote within 24 hours.
