CAP ALUM 10UF 20% 16V SMD

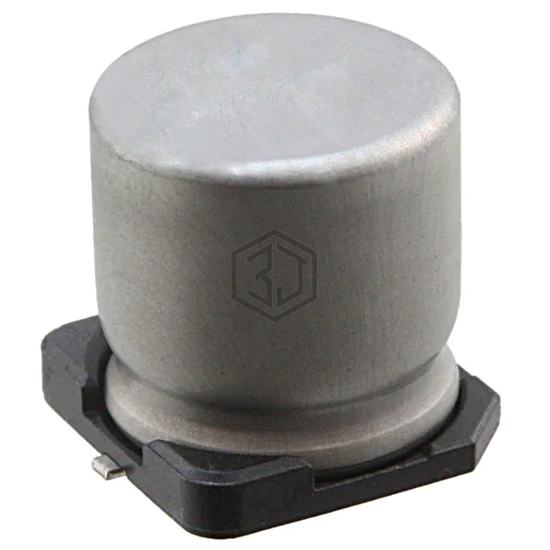

16NSEV10M5X5.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,603
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23 mA @ 120 Hz |
| Ripple Current @ High Frequency | 34.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWJ1C100MCL1GB | Nichicon | CAP ALUM 10UF 20% 16V SMD | 100% | View |
| AHA106M16B12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 16V SMD | 88% | View |
| EMVY160ADA100MD55G | United Chemi-Con | CAP ALUM 10UF 20% 16V SMD | 86% | View |
| UWT1E100MCR1GB | Nichicon | CAP ALUM 10UF 20% 25V SMD | 86% | View |
| EMVE250ADA100ME55G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 76% | View |
| 865250543004 | Würth Elektronik | CAP ALUM 10UF 20% 35V SMD | 68% | View |
Submit your RFQ for 16NSEV10M5X5.5 and get a quote within 24 hours.
