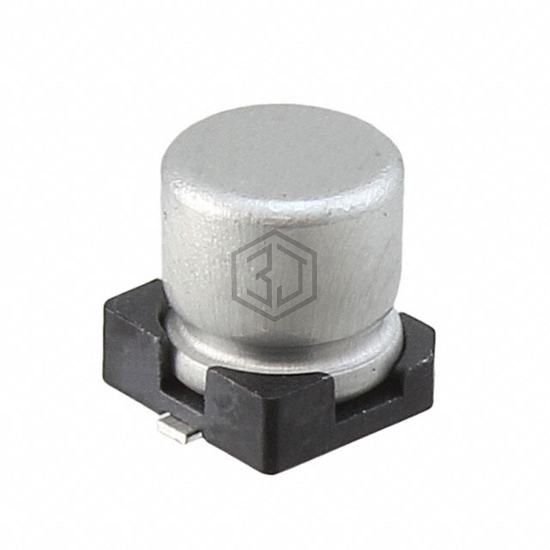

CAP ALUM 2.2UF 20% 35V SMD
UZP1V2R2MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,285
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 12.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZP1V2R2MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDK225M035S9BAA | KEMET | CAP ALUM 2.2UF 20% 35V SMD | 93% | View |
| EMVL500ADA2R2MD60G | United Chemi-Con | CAP ALUM 2.2UF 20% 50V SMD | 76% | View |
| 50NSKV2.2M5X5.5 | Rubycon | CAP ALUM 2.2UF 20% 50V SMD | 68% | View |
| DK225M050A9BAAKPLP | KEMET | CAP ALUM 2.2UF 20% 50V SMD | 63% | View |
| EEE-HB1H2R2R | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V SMD | 55% | View |
| EEE-1HA2R2NR | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V SMD | 55% | View |
Submit your RFQ for UZP1V2R2MCL1GB and get a quote within 24 hours.
