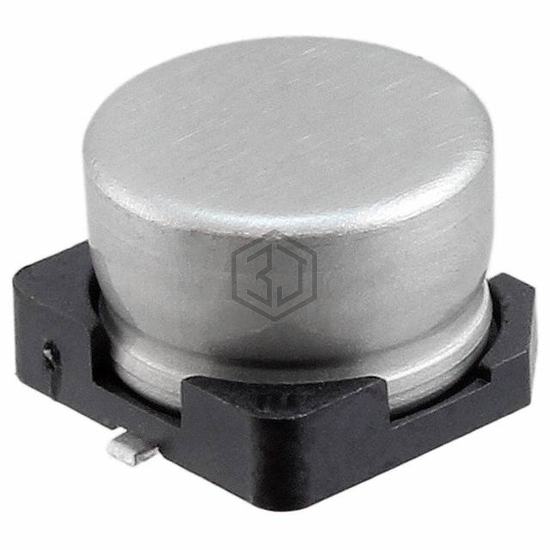

CAP ALUM 4.7UF 20% 50V SMD
UZP1H4R7MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,508
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZP1H4R7MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUQ1H4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 98% | View |
| 35SJV4.7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 78% | View |
| EDK475M016S9BAA | KEMET | CAP ALUM 4.7UF 20% 16V SMD | 75% | View |
| EEE-1EA4R7NR | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 25V SMD | 74% | View |
| EEE-HB1E4R7AR | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 25V SMD | 71% | View |
| AFK475M80D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 80V SMD | 69% | View |
