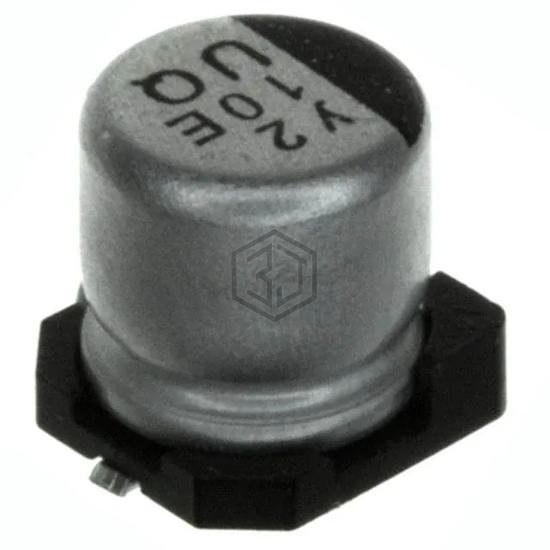

CAP ALUM 4.7UF 20% 50V SMD
UUQ1H4R7MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,222
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 19 mA @ 120 Hz |
| Ripple Current @ High Frequency | 28.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-HA1H4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V SMD | 94% | View |
| 35SJV4.7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 81% | View |
| EEE-HA1V4R7AR | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 35V SMD | 79% | View |
| 35JGV4.7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 78% | View |
| AFK475M80D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 80V SMD | 67% | View |
| EEE-FK1K4R7V | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 80V SMD | 67% | View |
