CAP ALUM 22UF 20% 16V SMD

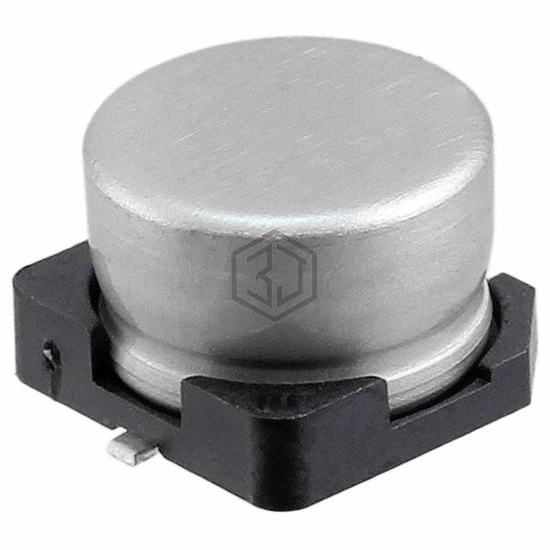

UZP1C220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,235
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 37 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZP1C220MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVKBP16VC22RMF60TP | United Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 95% | View |
| EMVL160ARA220ME60G | Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 82% | View |
| EMVL500ADA220MF80G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 71% | View |
| EMZA6R3ADA220MD61G | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 67% | View |
| EEE-HC1H220XP | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 62% | View |
| 50SGV22M6.3X8 | Rubycon | CAP ALUM 22UF 20% 50V SMD | 51% | View |
Submit your RFQ for UZP1C220MCL1GB and get a quote within 24 hours.
