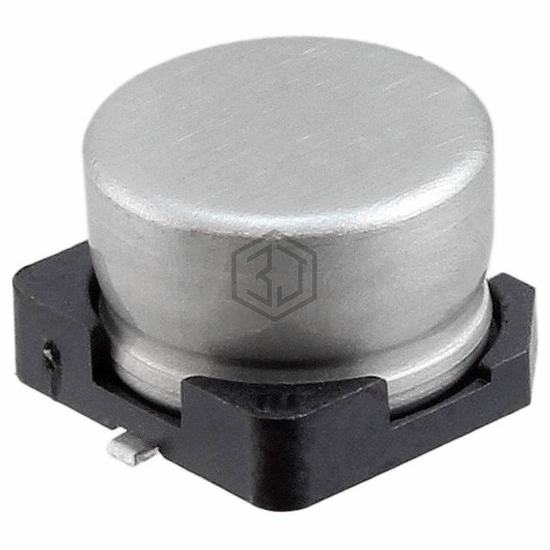

CAP ALUM 33UF 20% 6.3V SMD
UZP0J330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 7,749
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 37 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZP0J330MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES336M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 6.3V SMD | 86% | View |
| UZG0J330MCL1GB | Nichicon | CAP ALUM 33UF 20% 6.3V SMD | 83% | View |
| ATB336M6R3 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 6.3V SMD | 76% | View |
| EMVA160ADA330ME55G | United Chemi-Con | CAP ALUM 33UF 20% 16V SMD | 71% | View |
| MAL215376339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 25V SMD | 66% | View |
| 865250343005 | Würth Elektronik | CAP ALUM 33UF 20% 16V SMD | 65% | View |
Submit your RFQ for UZP0J330MCL1GB and get a quote within 24 hours.
