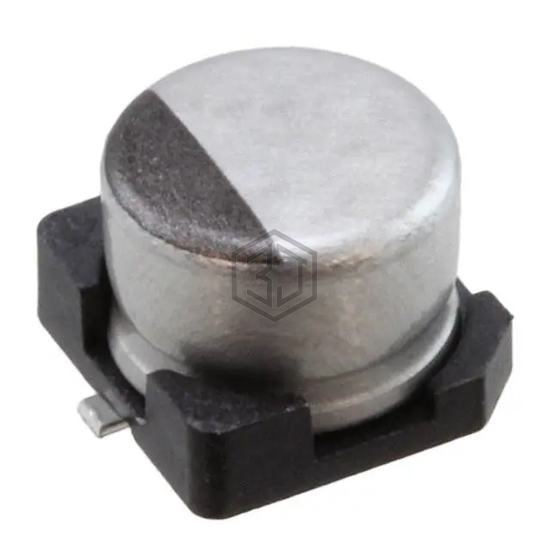

CAP ALUM 33UF 20% 6.3V SMD
UZG0J330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,407
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 26 mA @ 120 Hz |
| Ripple Current @ High Frequency | 39 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZT0J330MCL1GB | Nichicon | CAP ALUM 33UF 20% 6.3V SMD | 100% | View |
| AVES336M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 6.3V SMD | 96% | View |
| UWZ0J330MCL1GB | Nichicon | CAP ALUM 33UF 20% 6.3V SMD | 93% | View |
| EMVL100ADA330ME60G | United Chemi-Con | CAP ALUM 33UF 20% 10V SMD | 78% | View |
| EMVE100ADA330ME55G | United Chemi-Con | CAP ALUM 33UF 20% 10V SMD | 72% | View |
| EEE-HAC330WAR | Panasonic Electronic Components | CAP ALUM 33UF 20% 16V SMD | 62% | View |
Submit your RFQ for UZG0J330MCL1GB and get a quote within 24 hours.
