CAP ALUM 10UF 20% 16V SMD

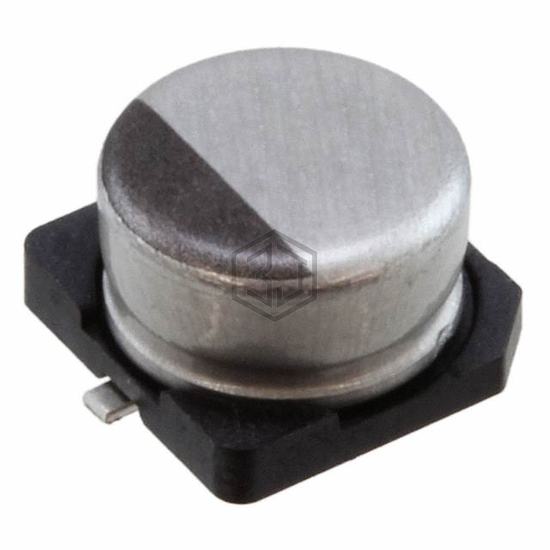

UZD1C100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,638
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23 mA @ 120 Hz |
| Ripple Current @ High Frequency | 34.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZD1C100MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NACE100M16V4X5.5TR15F | NIC Components Corp | CAP ALUM 16V POLAR | 97% | View |
| MVE25VC10RME55TP | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 76% | View |
| 16TZV10M4X6.1 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 72% | View |
| 106NCN035MQ5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 35V SMD | 61% | View |
| EEE-TG1J100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 57% | View |
| UZR0J100MCR1GB | Nichicon | CAP ALUM | 56% | View |
Submit your RFQ for UZD1C100MCL1GB and get a quote within 24 hours.
