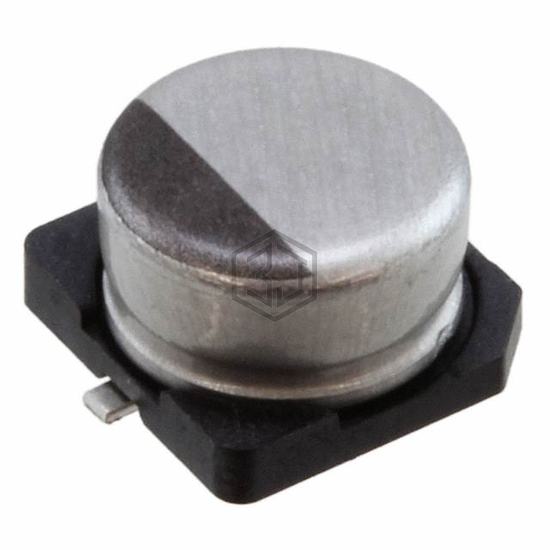

CAP ALUM 33UF 20% 6.3V SMD
UZD0J330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 6,346
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 37 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZD0J330MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865250142003 | Würth Elektronik | CAP ALUM 33UF 20% 6.3V SMD | 100% | View |
| UWZ1A330MCL1GB | Nichicon | CAP ALUM 33UF 20% 10V SMD | 83% | View |
| EEE-1EA330WAR | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 70% | View |
| AVEZ336M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 6.3V SMD | 63% | View |
| UCJ1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 60% | View |
| 25JGV33M6.3X6.1 | Rubycon | CAP ALUM 33UF 20% 25V SMD | 52% | View |
Submit your RFQ for UZD0J330MCL1GB and get a quote within 24 hours.
