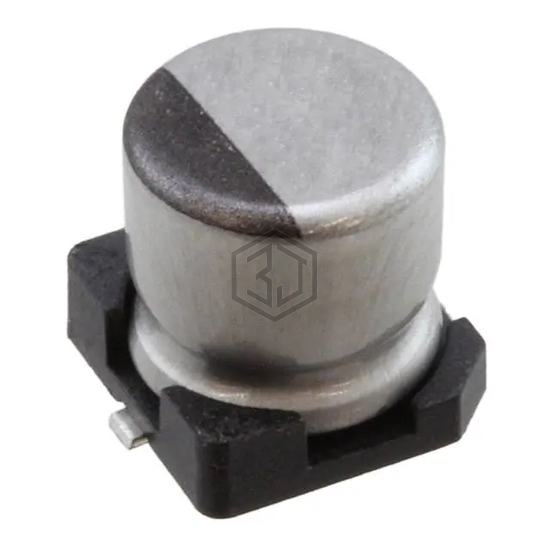

CAP ALUM 33UF 20% 10V SMD
UWZ1A330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 52.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 336SVL010MDW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 10V SMD | 96% | View |
| 10SZV33M5X5.5 | Rubycon | CAP ALUM 33UF 20% 10V SMD | 76% | View |
| AVES336M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 6.3V SMD | 74% | View |
| MAL215376339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 25V SMD | 64% | View |
| AVEZ336M10C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 10V SMD | 60% | View |
| ATB336M6R3 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 6.3V SMD | 59% | View |
Submit your RFQ for UWZ1A330MCL1GB and get a quote within 24 hours.
