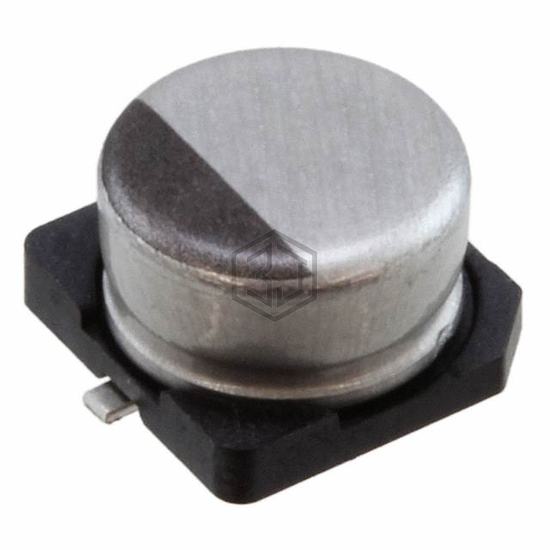

CAP ALUM 22UF 20% 6.3V SMD
UZD0J220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,970
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 42 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZD0J220MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVE6R3ADA220MD55G | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 92% | View |
| 276AXZ6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 27UF 20% 6.3V SMD | 68% | View |
| 865250342004 | Würth Elektronik | CAP ALUM 22UF 20% 16V SMD | 66% | View |
| EDH226M050S9GAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 64% | View |
| 865080140002 | Würth Elektronik | CAP ALUM 27UF 20% 6.3V SMD | 63% | View |
| EEE-1HA220WAP | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 59% | View |
Submit your RFQ for UZD0J220MCL1GB and get a quote within 24 hours.
