Panasonic Electronic Components
CAP ALUM 22UF 20% 50V SMD

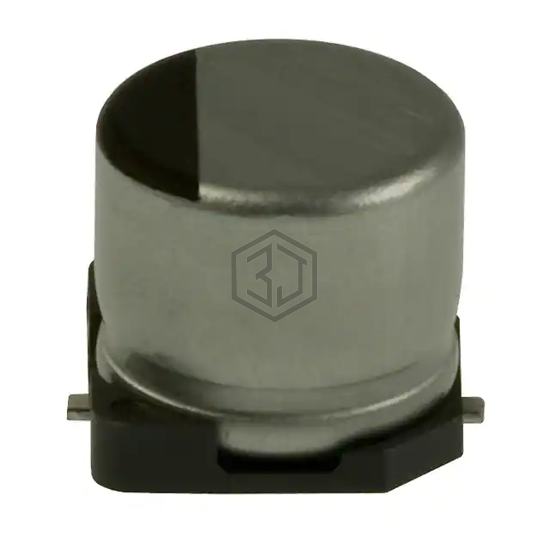

EEE-1HA220WAP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,785
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 68 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VES220M1HTR-0605S | Surge | CAP ALUM 50V POLAR | 93% | View |
| VEZ220M1HTR-0605S | Surge | CAP ALUM 50V POLAR | 91% | View |
| AVE226M35D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 75% | View |
| NACE220M16V5X5.5TR13F | NIC Components Corp | CAP ALUM 22UF 20% 16V SMD | 74% | View |
| VEU220M1ETR-0606S | Surge | CAP ALUM 25V POLAR | 74% | View |
| EMVE6R3ADA220MD55G | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 52% | View |
Submit your RFQ for EEE-1HA220WAP and get a quote within 24 hours.
