CAP ALUM 5000UF 20% 35V RADIAL

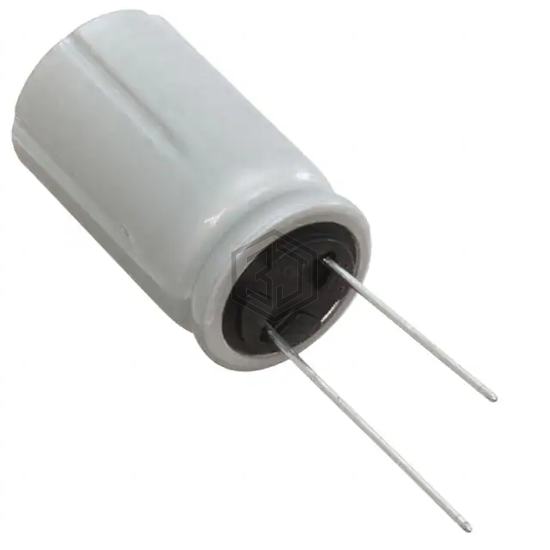

UXY1V502MHW is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,533
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 23mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 4.573 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.38 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPD250ELL512MK40H | United Chemi-Con | CAP ALUM 5100UF 20% 25V RADIAL | 85% | View |
| UBY1V512MHL | Nichicon | CAP ALUM 5100UF 20% 35V RADIAL | 78% | View |
| UBY1E512MHL | Nichicon | CAP ALUM 5100UF 20% 25V RADIAL | 68% | View |
| EGPD250ELL562ML30H | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 63% | View |
| EEU-TP1E512 | Panasonic Electronic Components | CAP ALUM 5100UF 20% 25V RADIAL | 62% | View |
| EEU-TP1E472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 25V RADIAL | 61% | View |
