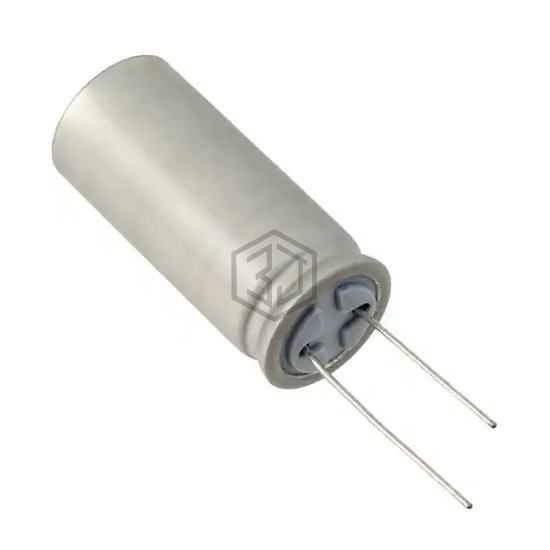

CAP ALUM 5100UF 20% 25V RADIAL
UBY1E512MHL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5100UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,058
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 24mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.95 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.47 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPD250ELL562ML30H | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 95% | View |
| EEU-TP1E512 | Panasonic Electronic Components | CAP ALUM 5100UF 20% 25V RADIAL | 94% | View |
| EEU-TP1E472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 25V RADIAL | 91% | View |
| UBY1V512MHL | Nichicon | CAP ALUM 5100UF 20% 35V RADIAL | 90% | View |
| EGPD250ELL512MK40H | United Chemi-Con | CAP ALUM 5100UF 20% 25V RADIAL | 75% | View |
| UXY1V502MHW | Nichicon | CAP ALUM 5000UF 20% 35V RADIAL | 68% | View |
Submit your RFQ for UBY1E512MHL and get a quote within 24 hours.
