CAP ALUM 330UF 20% 25V SMD

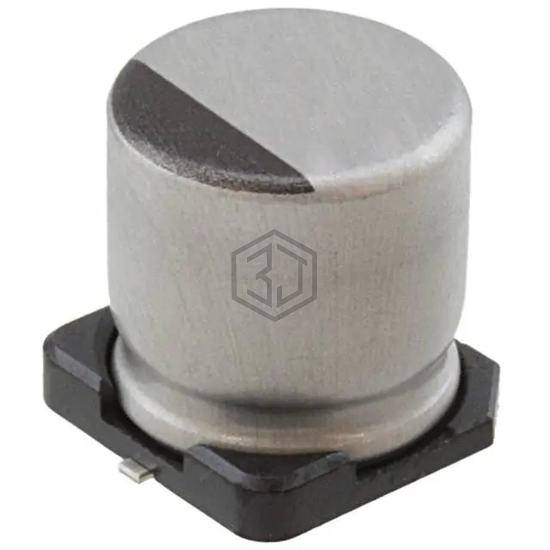

UWZ1E331MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,363
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 285 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215376331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V SMD | 85% | View |
| 865080145010 | Würth Elektronik | CAP ALUM 330UF 20% 6.3V SMD | 77% | View |
| MAL214099611E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V SMD | 69% | View |
| EEE-FK1E331GL | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 62% | View |
| EMZR160ARA331MF80G | United Chemi-Con | CAP ALUM 330UF 20% 16V SMD | 58% | View |
| EEE-FN1V331UL | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 55% | View |
Submit your RFQ for UWZ1E331MCL1GS and get a quote within 24 hours.
