Vishay Beyschlag/Draloric/BC Components

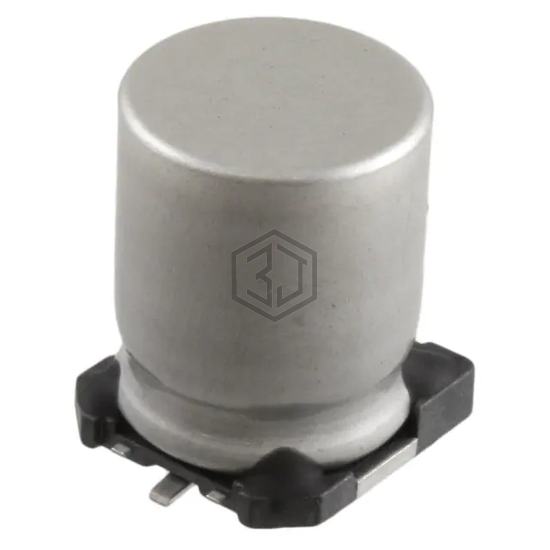

CAP ALUM 330UF 20% 25V SMD
MAL214099611E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUE1E331MNS1MS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 100% | View |
| VUJ331M1ETR-1313S | SURGE | CAP ALUM 330UF 20% 25V SMD | 95% | View |
| MAL214699602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V SMD | 92% | View |
| MAL214099012E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V SMD | 89% | View |
| MAL214699501E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V SMD | 81% | View |
| VUJ331M1VTR-1313S | SURGE | CAP ALUM 330UF 20% 35V SMD | 81% | View |
