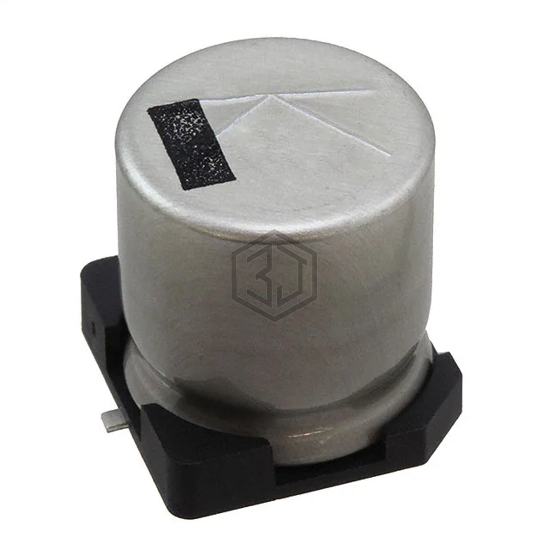

CAP ALUM 1000UF 20% 6.3V SMD
6.3SGV1000M12.5X13.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,226
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 495 mA @ 120 Hz |
| Ripple Current @ High Frequency | 594 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK0J102GP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 97% | View |
| 108SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 6.3V SMD | 87% | View |
| EEE-FK1A102AV | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 73% | View |
| UWT1A102MNL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 69% | View |
| EEE-FN1C102UP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V SMD | 66% | View |
| UUE1A102MNS1MS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 65% | View |
Submit your RFQ for 6.3SGV1000M12.5X13.5 and get a quote within 24 hours.
