CAP ALUM 22UF 20% 25V SMD

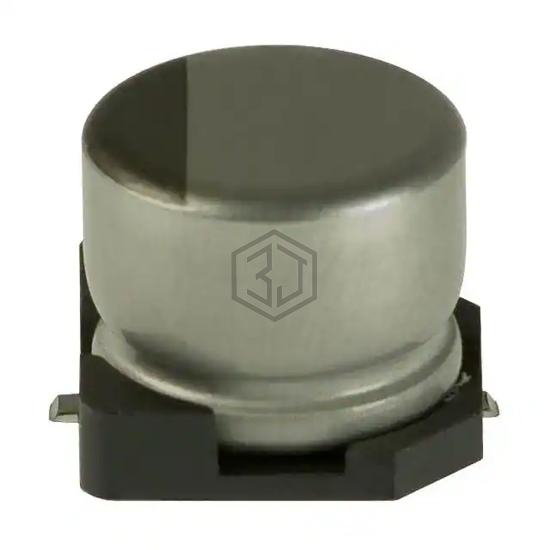

UWX1E220MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,853
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 42 mA @ 120 Hz |
| Ripple Current @ High Frequency | 63 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1E220MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDK226M025A9DAA | KEMET | CAP ALUM 22UF 20% 25V SMD | 87% | View |
| UWP1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 67% | View |
| UCQ1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 63% | View |
| EEE-FK0J220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 62% | View |
| 226SML6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 6.3V SMD | 62% | View |
| UUX1H220MCL6GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 56% | View |
Submit your RFQ for UWX1E220MCR1GB and get a quote within 24 hours.
