CAP ALUM 22UF 20% 10V SMD

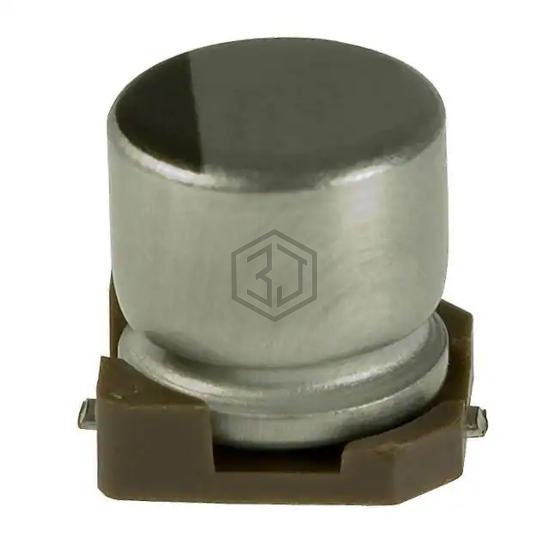

UWX1A220MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,009
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1A220MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZG1C220MCL1GB | Nichicon | CAP ALUM 22UF 20% 16V SMD | 74% | View |
| AVES226M16C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 16V SMD | 73% | View |
| EMVE250ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 25V SMD | 62% | View |
| 35SJV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 62% | View |
| EDK226M025S9GAA | KEMET | CAP ALUM 22UF 20% 25V SMD | 59% | View |
| EDK226M6R3A9BAA | KEMET | CAP ALUM 22UF 20% 6.3V SMD | 58% | View |
