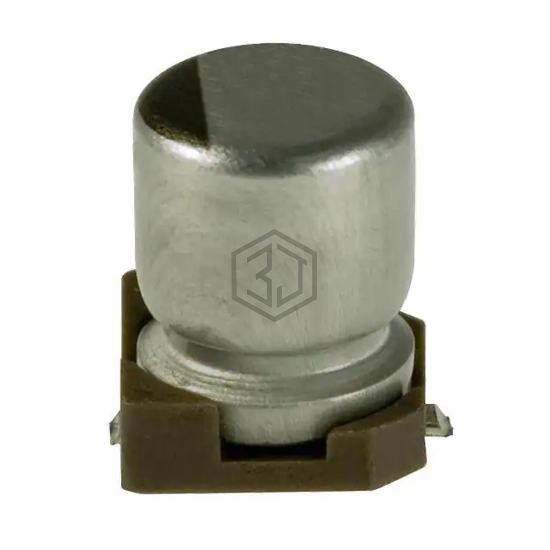

CAP ALUM 4.7UF 20% 35V SMD
UWT1V4R7MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,241
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz |
| Ripple Current @ High Frequency | 22.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT1V4R7MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35JGV4.7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 100% | View |
| 50SKV4.7M5X5.5 | Rubycon | CAP ALUM 4.7UF 20% 50V SMD | 80% | View |
| AVES475M25B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 25V SMD | 77% | View |
| UUD1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 68% | View |
| 35SZV4.7M4X5.5 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 64% | View |
| UWG1V4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 60% | View |
