CAP ALUM 22UF 20% 50V SMD

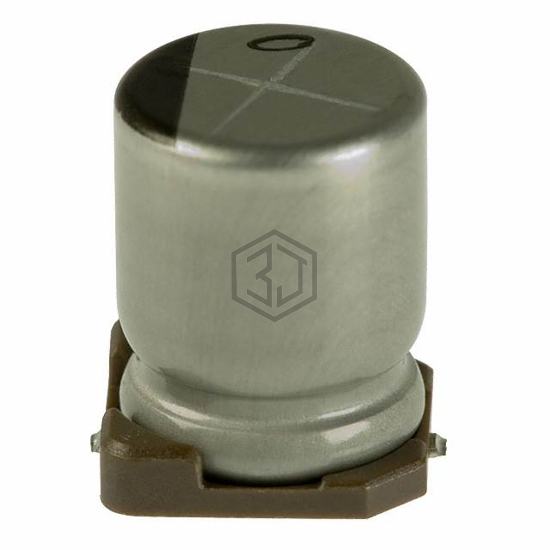

UWT1H220MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,852
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 51 mA @ 120 Hz |
| Ripple Current @ High Frequency | 76.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT1H220MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865080140001 | Würth Elektronik | CAP ALUM 22UF 20% 6.3V SMD | 77% | View |
| 35JZV22M5X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 68% | View |
| EEE-FK1H220L | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 60% | View |
| UUP1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 58% | View |
| UUA1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 54% | View |
| UT226M016HDHTA | Aillen | CAP. ALUM 22UF 16V 20% SMD | 52% | View |
Submit your RFQ for UWT1H220MCR1GB and get a quote within 24 hours.
