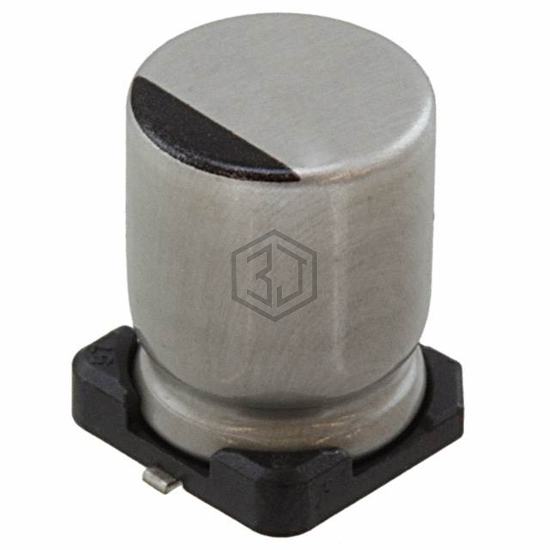

CAP ALUM 470UF 20% 6.3V SMD
UWS0J471MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,005
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 265 mA @ 120 Hz |
| Ripple Current @ High Frequency | 344.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWS0J471MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUL0J471MNL1GS | Nichicon | CAP ALUM 470UF 20% 6.3V SMD | 97% | View |
| EEE-FTJ471XAP | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V SMD | 77% | View |
| DH477M016A9MAAKPLP | KEMET | DH477M016A9MAAKPLP | 73% | View |
| EDT477M010S9PAA | KEMET | CAP ALUM 470UF 20% 10V SMD | 70% | View |
| 477SML025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 25V SMD | 56% | View |
| 865060457009 | Würth Elektronik | CAP ALUM 470UF 20% 25V SMD | 51% | View |
