Panasonic Electronic Components

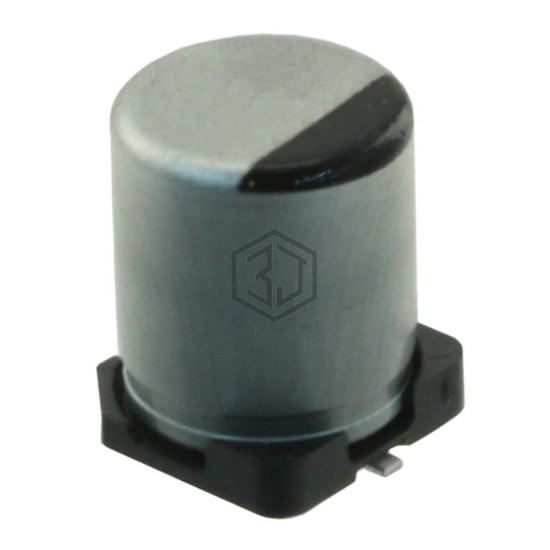

CAP ALUM 470UF 20% 6.3V SMD
EEE-FTJ471XAP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,512
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 160 mohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FH0J471L | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V SMD | 100% | View |
| EEE-FTA471XAV | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 86% | View |
| UCD1C471MNL1GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 73% | View |
| UWT1E471MNL1GS | Nichicon | CAP ALUM 470UF 20% 25V SMD | 66% | View |
| MAL216099602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V SMD | 66% | View |
| UCL1E471MNL1GS | Nichicon | CAP ALUM 470UF 20% 25V SMD | 52% | View |
Submit your RFQ for EEE-FTJ471XAP and get a quote within 24 hours.
