CAP ALUM 22UF 20% 16V SMD

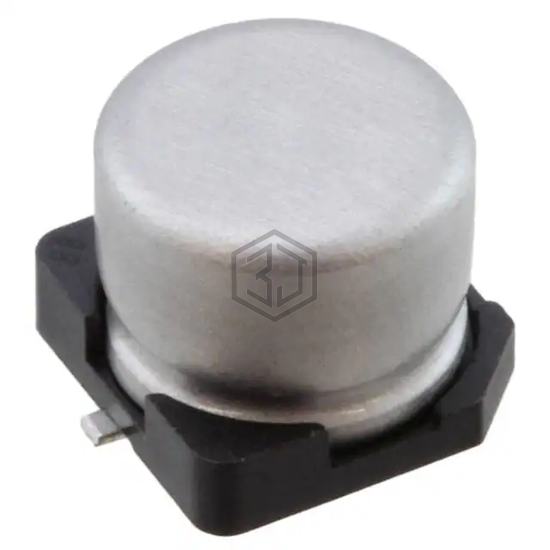

UWP1C220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 37 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWX1C220MCR1GB | Nichicon | CAP ALUM 22UF 20% 16V SMD | 100% | View |
| EMVE160ADA220ME55G | United Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 93% | View |
| UWT1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 85% | View |
| UZT1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 78% | View |
| UT226M063HEJTA | Aillen | CAP. ALUM 22UF 63V 20% SMD | 60% | View |
| EEE-TG2A220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 100V SMD | 56% | View |
Submit your RFQ for UWP1C220MCL1GB and get a quote within 24 hours.
