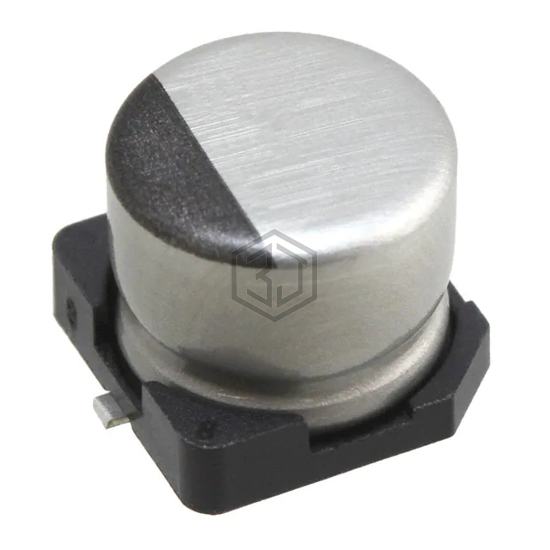

CAP ALUM 22UF 20% 25V SMD
UWJ1E220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,611
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 42 mA @ 120 Hz |
| Ripple Current @ High Frequency | 63 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWJ1E220MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWZ1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 95% | View |
| EMVA350ADA220ME55G | United Chemi-Con | CAP ALUM 22UF 20% 35V SMD | 81% | View |
| EEE-HC0J220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 59% | View |
| 6.3SGV22M4X6.1 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 56% | View |
| ULR2D220MNL1GS | Nichicon | CAP ALUM 22UF 20% 200V SMD | 56% | View |
| 10SEV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 10V SMD | 56% | View |
Submit your RFQ for UWJ1E220MCL1GB and get a quote within 24 hours.
